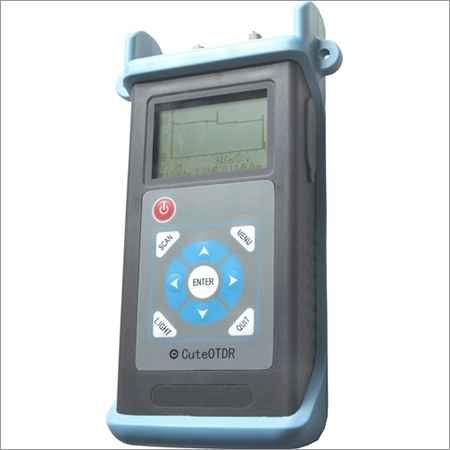

VT3203 Cute OTDR

VT3203 Cute OTDR
VT3203 Cute OTDR
Product Code : VT3203
Product Description

â… . Overview

    VT3203 CuteOTDR combines the industry’s leading OTDR technology with visible laser source in one hand-held unit. Optimized for point-to-point testing of passive optical networks (PON), it offers several wavelength configurations and a wide range of options, for first-class flexibility and full coverage of short-haul OTDR test applications.

    The VT3203 CuteOTDR offers a smart software option that provides pass/fail status at all wavelengths, as well as span loss, ORL, fiber length and macro bend locations in a single window.

â…¡. Main functions and features

-- Test smart, accurate, and direct fiber link given event type, location and loss information

-- Simple, fast, without complex training, suitable for field operation

-- Event dead zone less than 5m

-- Attenuation dead zone less than 10m

-- USB-based OTDR, large data storage

-- 650nm visible light output

-- Hand-held design, compact and lightweight

-- Anti-seismic, shockproof protective

-- 2.5mm universal connector, FC / ST / SC exchangeable

-- Low-power design, suitable for AA-size alkaline batteries

-- Auto shutdown power saving design

â…¢. Specifications

Regular OTDR Specifications

Available wavelength

1310 or 1550nm

Fiber type

Single mode fibers

Photo detector

InGaAs

Pulse Duration

20,50,100,200,500,1000ns

Max. Measurement Distance

60km

Dead Zone

5m(Reflective Event)

<10m(Non-reflective Event)

Loss Measurement Accuracy

0.1dB/dB

Visual Light Output

650nm

Distance Accuracy

+/-2(m)+3×10-3×distance+/-2(m)+3×10-3×Distance

Power Supply

1.5V Battery×3

Data storage

100 event information

General Specifications

Fiber Connector

FC/PC

Operating Temperature

0℃~+50℃

Storage Temperature

-20℃~+60℃

Operating Humidity

0~90% R.H. Non-condensing

Dimensions(L×W×H)

210×120×54mm

Weight

500g

â…£. Ordering Information



NO.

Items

Quantity

1

VT3203 OTDR

1

2

FC Adapter

1

3

User Manual

1

4

USB Data Cable

1

5

CD

1

6

1.5V AA-size alkaline batteries

3

7

Power Adapter

1

8

Quality Certificate

1

9

BB-002 Clean Cotton Stick

1
